CNC Equipment & Software

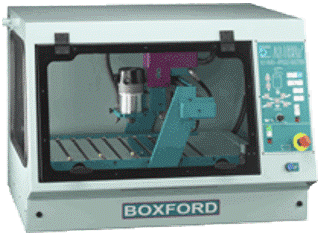

A3HSRi2 High Speed Router A bench top high performance router specifically designed for educational and training installations. The PC controlled Boxford A3HSRi High Speed Router is ideally suited to a classroom environment and offers the ideal solution for high tech education and training requirement's. Operating on IBM/100% compatible computers, the inclusive user-friendly software has routines for Computer Aided Design [CAD] at both simple and sophisticated levels and will process the drawings through to a full machining routine.
A3HSRmi2 High Speed Router A bench top high performance router specifically designed for educational and training installations capable of machining aluminum alloys and brass. The PC controlled Boxford A3HSRmi2 High Speed Router is ideally suited to a classroom environment and offers the ideal solution for high tech. education and training requirement's. Operating on IBM/100% compatible computers, the inclusive user-friendly software has routines for Computer Aided Design [CAD] at both simple and sophisticated levels and will process the drawings through to a full machining routine. Watch A3HSRmi2 Router in action
A1HSRi2 & A1HSRsi High Speed Routers
Floor standing high performance routers specifically
designed for educational and training installations. The PC controlled
Boxford A1HSRi2 & A1HSRsi High Speed Routers are ideally suited to a
classroom environment and offers the ideal solution for high tech. education
and training requirements. Operating on IBM/100% compatible computers, the
inclusive user-friendly software has routines for Computer Aided Design
[CAD] at both simple and sophisticated levels and will process the drawings
through to a full machining routine.
MidiMILL - Bench Top Vertical Machining Center A low cost, high capacity, Vertical Machining Center specifically designed for educational and training installations. The PC controlled Boxford MidiMILL Vertical Machining Center is ideally suited to a classroom environment and offers the ideal solution for high tech. education and training requirement's. Operating on IBM/100% compatible computers, the inclusive user-friendly software has routines for Computer Aided Design [CAD] at both simple and sophisticated levels and will process the drawings through to a full machining routine.
190VMCxi - Bench Top Vertical Machining Center.
An integrated bench top
vertical machining center specifically designed for educational and training
installations.
Operated by personal
computer, the bench top 190VMCxi Vertical Machining Centre is ideally suited
for the classroom yet is capable of cutting steel to close tolerances.
Special accessories allow the machining of wood and plastics for multimedia
design and technology. • Automatic CAM software • Cuts steel, brass, aluminum, plastic and wood Watch 190VMCxi machining steel
160TCLi
Bench Top CNC Turning Center. Automatic CAM software, cuts steel, brass, aluminum, plastic and wood , 3D graphics, and Slant bed construction. Watch 160TCLi turning metal
Duet - Duel purpose CNC
Machining Center
MT2i - Floor Standing Combined Lathe and Mill Designed for educational and training installations. The PC controlled Boxford MT2 combined lathe and mill is ideally suited to a classroom environment and offers the perfect solution for high tech. education and training requirement’s. The unique combination Lathe Turret and 3rd Mill Axis allows steel to be cut to close tolerances. Operating on IBM/100% compatible computers, the inclusive user-friendly software has routines for Computer Aided Design [CAD] at both simple and sophisticated levels and will process the drawings through to a full machining routine. Integrated CAD software, automatic CAM software, cuts steel, brass, aluminum, plastic and wood, 3D graphics. Watch MT2i machining steel
T220i Lathe A floor standing Lathe designed for educational and training installations. The PC controlled Boxford T220 lathe is ideally suited to a classroom environment and offers the perfect solution for high tech. education and training requirement’s. The rigid construction allows steel to be cut to close tolerances. Operating on IBM/100% compatible computers, the inclusive user-friendly software has routines for Computer Aided Design [CAD] at both simple and sophisticated levels and will process the drawings through to a full machining routine The Boxford software is an integrated suite of powerful CAD/CAM tools. The CAD includes the handling of most text fonts with excellent manipulation routines. Drawings from other CAD applications can also be imported and processed. A full 3D simulation of the manufacturing process, including a cycle time, can be shown enabling work to be proven without the need for trial cutting. Manual Data Input allows programs to be entered using the Industrial Standard Codes. Touch sensitive control panel incorporating illuminated push buttons allows the machines to be operated without a computer. Active and accurate tool path graphics continuously displayed line by line during program write, test run and manufacture.
250PCi Slant Bed Lathe A slant bed CNC controlled lathe incorporating features of larger, more expensive machines at a highly competitive price. Operated by personal computer, the 250PC slant bed lathe is ideally suited for all training requirements. Special accessories allow industrial level training to the most exacting requirements. Pre-loaded anti backlash ball screws and stepping motors with bi-polar chopper drives allows simultaneous movement of all axes with a system resolution of 0.01mm (0.0004").Infinitely variable and programmable spindle speeds from 1.5kw (2HP) AC motor with inverter controlled drive package and overload cut-out. Single-phase electricity power supply gives easy installation. Touch sensitive control panel incorporating illuminated push buttons allows the machines to be operated without a computer. Full perimeter guarding with fail safe switches in the positive (safety) mode on access doors and guards stop spindle and axes movements. Constant surface speed. 2 feed modes (per rev/per min). Links with 300VMC machining centre and robots in an FMS system Watch 250PCi turning metal
300VMCi Vertical Machining Center A CNC controlled machining center incorporating features of larger, more expensive machines at a highly competitive price. Operated by personal computer, the free-standing 300VMCi Vertical Machining Centre is ideally suited for all training up to industrial level. Pre-loaded anti backlash ball screws and stepping motors with micro-stepping drives allows simultaneous movement of all axes with a system resolution of 0.01mm (0.0004"). Infinitely variable and programmable spindle speeds from 1.26kw (1.9HP) DC motor with thyristor controlled drive package and overload cut-out. Single-phase electricity power supply gives easy transportability and installation. Touch sensitive control panel incorporating illuminated push buttons allows the machines to be operated without a computer. Full perimeter guarding with fail safe switches in the positive (safety) mode on access doors and guards stop spindle and axes movements. 6 position tool storage rack. Links with 250PC lathe and robots in an FMS system Watch 300VMCi machining steel Watch 300VMCi machining aluminum
'3D-GeoCAM' - Advanced 3D CAM Package
RapidPRO Allows the user to create solid objects designed using any CAD system capable of saving files in .STL format, a common standard in the 3D CAD world. RapidPRO imports a solid model and, using a special “wizard”, takes just a few clicks to “slice” the model. The slices are then cut out of sticky-backed paper in conjunction with a vinyl cutter (for instance a Roland CAMM-1), nesting as many slices as possible on a sheet to minimize paper usage. To further minimize material costs, the model can be scaled and the required number of sheets is displayed at any chosen scale.
Please Contact us for Pricing - Crystal Creations
